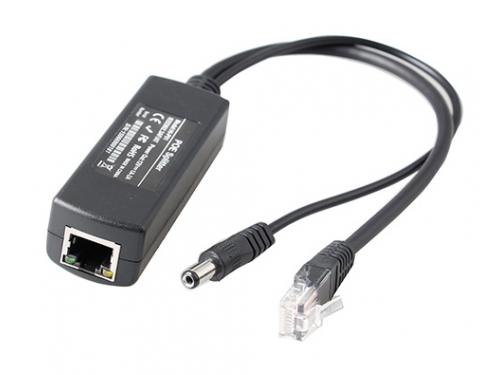

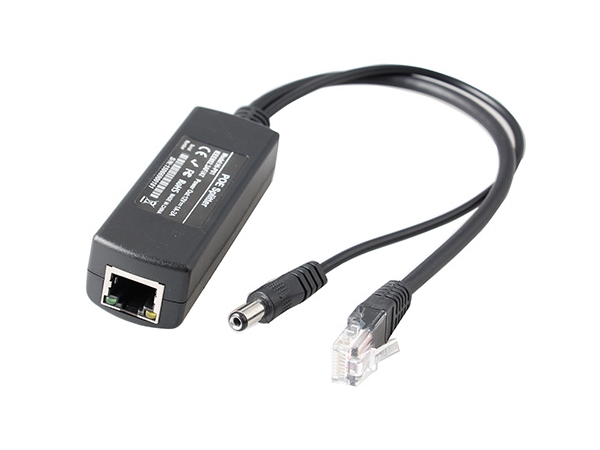

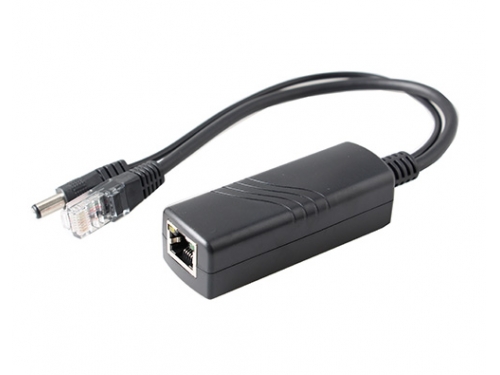

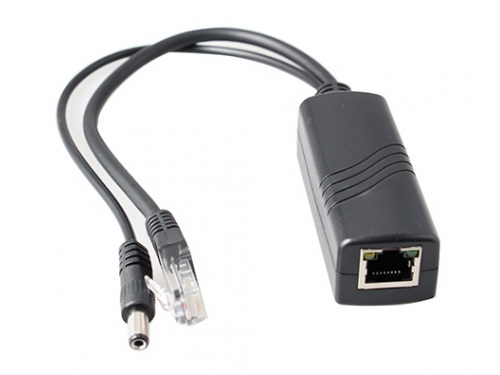

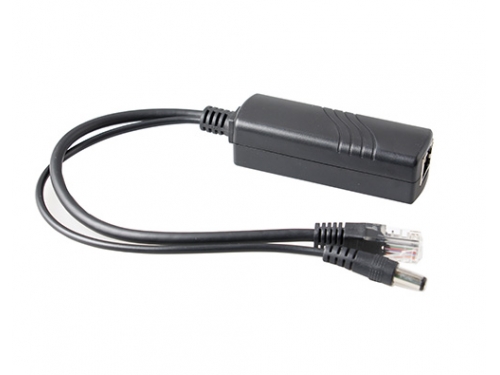

Model： HR-AFT-PD12D
Classification： POE Splitter
Order Information
Model: HR-AF-PD24D
Specifications: 10/100M POE Splitter, Provides DC 12V, IEEE 802.3af international standards, power 25.5W
Note: Default PoE power method is the End-Span (1 / 2,3 / 6 pairs), could custom-made the Mid-Span (4 / 5,7 / 8 pairs) PoE power method
Package Cheklist
| Package | 10/100M PoE Splitter(HR-AF-PD24D) |
|
User Manual |
|
|
Warranty card / User Support Information Card |
| Technical parameter list | |
| Product Name | 10/100M PoE Splitter |
| Product Model | HR-AFT-PD12D |
| Connector Type | 1x 10/100Mbps RJ45 port |
| Network Medium | Cat5 or above (UTP) |
| Network Protocol | IEEE 802.3 i 10 BASE-T,IEEE 802.3 u 100 BASE-TX,IEEE 802.3 x Flow Control,IEEE 802.3 af/atPower over Ethernet |
| PoE Port | 1 PoE Port |
| PoE Port Power | 15.4W |
| PoE Standard | IEEE 802.3 af/at |
| Certifications | CE,FCC,ROHS |
| LED Display | PoE power input indicator light,DC output power indicator light |
| Product Size | 88x30x25mm, with 250mm Cable |
| Working Environment | Operating Temperature: 0~55℃; Storage Temperature: -20~75℃; Operation Humidity: 10%-90%, non-condensing; Storage Humidity: 10%-95%, non-condensing |
| Warranty | 2 Year Warranty |
