Product Description
10-Ports 100M Ethernet Power Switch (PoE Switch), using high-quality high-speed network IC and the most stable PoE chip, PoE Port support 802.3af and 802.3at standard both, this series of PoE Switch can be 10/100M Ethernet The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af or IEEE802.3at standards. The non-PoE device intelligently detects no power and only transmits data.
PoE is Power over Ethernet, which refers to the transmission of data signals to some IP-based terminals (such as IP phones, wireless access APs, network cameras, etc.), but also provides DC power for this device. Technology, these devices that receive DC power are called powered devices.
With simple and convenient installation and maintenance methods and rich business features, it helps users to build a safe and reliable high-performance network. It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband; it can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools.
Product Name：10-Ports PoE Switch
Model：HR900-AF-82N
Connector Type：8 Port 10/100M PoE + 2 Port 10/100M Ethernet Uplink
Network Protocols：IEEE802.3，IEEE802.3u，IEEE802.3x
PoE Parameters：
PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w)
PoE compatibility: IEEE 802.3af/at adaptive
PoE port output: DC52V
Power Pin : 1/2(+) ; 3/6 (-)

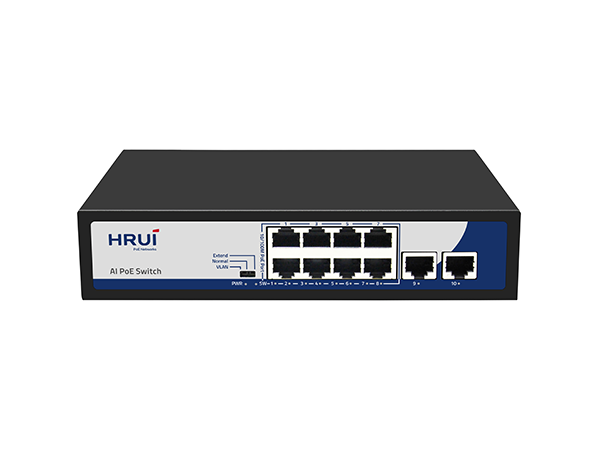

DIP：VLAN: Port isolation mode. In this mode, the PoE ports (1-8) of the switch cannot communicate with each other, and can only communicate with the UP-link port. The port AI mode is turned on.
Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive; The port AI mode is closed.
Extend: Link extension mode, 1-8 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M, and the port AI mode is turned on.
Network Media：10BASE-T: Cat3,4,5 UTP(≤100 meter)
10BASE-T: Cat 6 UTP(≤250 meter)
100BASE-TX: Cat5 or more UTP (≤100 meter)

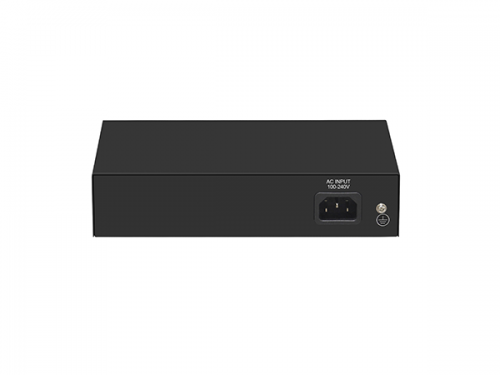

Power Supply： Power input: AC100-240V 50/60Hz, Output: 52V2.3A, Power Budget: 120W
Performance Specification：Bandwidth: 2Gbps，MAC Address: 1K，Packet Buffer Memory: 448K，
Packet Forwarding Rate: 0.1488M pps/each port，
Forwarding Mode: Store-And-Forward
Working Environment：Operating Temperature: -20℃ ~ 50℃;
Storage Temperature: -40℃ ~ 85℃;
Operating Humidity: Max 90%, non-condensing
Storage Humidity: Max 95%, non-condensing
Working Height: Max to 10,000 feet (3,000 meters)
Storage Height: Max to 10,000 feet (3,000 meters)
Product Dimension (L*W*H): 200mm*120mm*45mm
Package Dimension (L*W*H): 245mm*190mm*60mm
N.W: 0.64KG
G.W: 0.9KG
Package Contents：1.Ethernet Switch：1 unit
2.User Guide：1 unit
3.Warranty Card：1 unit
4.Power Cord：1unit
5.Wall Mount: 1 pair
6.1U Rack Mount: 1 pair ( Optional )
Certification：CE ,RoHS, FCC, CCC
MTBF：100,000 hours
Warranty：2 years warranty
